MONOFILAMENT POLYESTER PRINTING MESH(BOLTING CLOTH)

Polyester was introduced to the screen printing market over 40 years ago and quickly replaced traditional silk as the fabric of choice among screen printers all over the world. It is a material that is uniquely suitable for screen printing because of its tensile strength, elastic memory and resistance to chemicals, abrasion heat and moisture. Polyester screen is a kind of synthetic fabric constructed similar to silk, yet with better uniformity. Compared to silk, polyester screen cloth offers extreme durability, yet has a lower price.

Maishi Monofilament Polyester Printing Screen (Silk screen printing mesh) is woven from yarn that is extruded from heated polyester into a single strand. The extruded thread is the spun to a precise diameter. Conventional monofilament polyester screen fabric will elongate under tension: the higher the tension level, the more the thread can stretch. At excessive tension levels, the thread reaches its "plastic deformation" point, and the screen will no longer hold tension.

General Specification of Monofilament Polyester Printing Mesh: 15mesh/inch,25mesh/inch, 30mesh/inch, 38mesh/inch, 60mesh/inch, 75mesh/inch, 80mesh/inch 100mesh/inch, 110mesh/inch, 120mesh/inch, 135mesh/inch, 160mesh/inch, 180mesh/inch, 200mesh/inch, 230mesh/inch, 250mesh/inch, 280mesh/inch, 305mesh/inch, 355mesh/inch, 380mesh/ inch, 420mesh/ inch.

We can supply polyester printing mesh are of high quality and precision with a wide range form 15mesh(6T)-420mesh(165T), width :0.3m to 3.9m ,and there are three color available : White, Yellow and Black.

Polyester Printing Mesh Production Process:

We buy yarn from Jintong,Switzerland and Japan, we inspect the yarn when they unloaded in our factory. (tolerance,tensile strengh, physics test ect.).

During production, first we put the warp wire on beam, draw the warp wire into heddle and reed. Then our experienced weaver will start weaving mesh accoding to orders.

Initial survey is taken during and after weaving. Then the heat setting treatment and physical properties inspection will be done before we get tentativa finished rolls (normally 60-500 meters rolls).

In the end, after the final inspection, we will cut the mesh into small rolls(20m-50m) according to customer orders.

Polyester Printing Mesh Test:

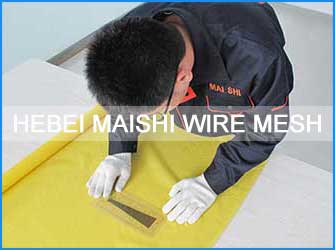

1.mesh count inspect

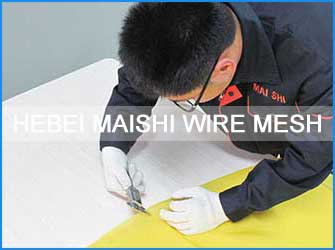

2.thickness inspect

3.thread dia&hole inspect

4.elongation test

5.tensile test

Detail Specification of 100% Monofilament Polyester Bolting cloth
(Printing Mesh)

TYPE
MEHS
COUNT
mesh/inch
APERTURE
micron
THREAD
DIAMETER
micron
OPENING
%
THICKNESS
micron
INK THROUGH
VOLUME
THEORETICALLY
cm3/m2
TENSILE
STRENGTH
N/CM
6-40015125040085780-810680135
10-2502570025049508-51835585
12-2503061025053495-50530585
15-2503846725049489-50121383
24-1006031610057188-19510949
30-1207521312041235-24510252
32-1008021210046145-1556948.5
39-55100195555688-965529
39-801001768048148-1537331
43-801101478040.8125-1315331
47-55120152555188-9647.629
48-701201357041108-12045.530
53-55135128554788-9644.529
54-641371156438.595-10538.930
54-701371087034108-1204031
64-45160105484373-8236.530
64-5516098553885-9536.130
64-6416088643095-10530.731
72-4518092454068-7633.127.6
72-4818090483675-8433.128
77-5519575552886-9226.629
80-4820072483375-8428.727
90-4823056482577-8523.525
100-4025058403766-7321.328.5
110-4028052403378-8520.529.6
120-34305453430.552-5718.430.5
140-34355313419.556-6214.431
150-3138036312943-4713.130.5
150-34380303420.556-6214.930.5
165-31420313122.552-5812.528.9
